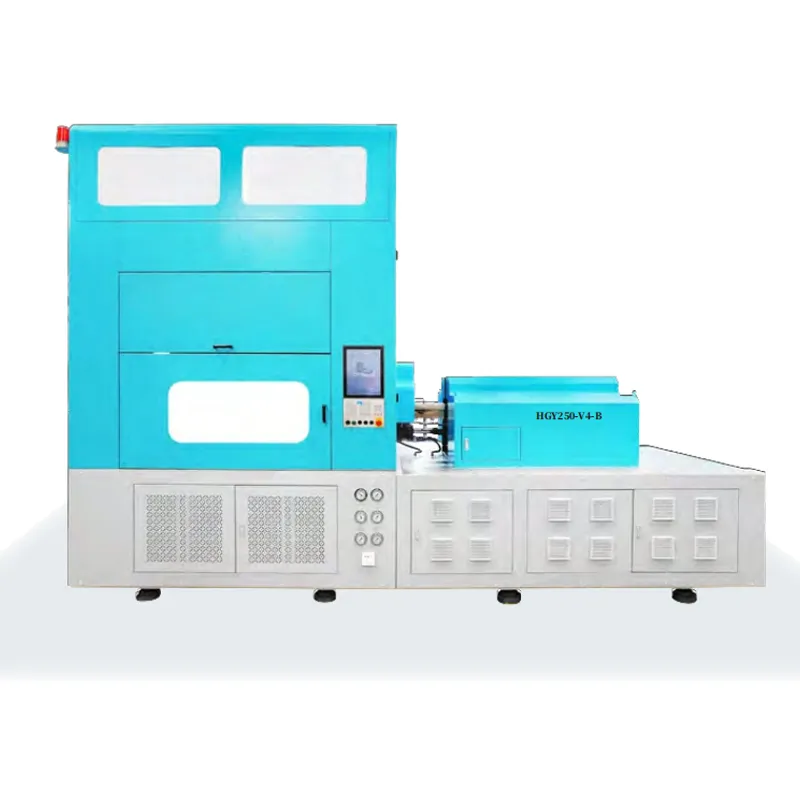

EP-HGY250-V4-B One-Step Injection Stretch Blow Molding Machine ISBM Machine (Four-Station)

Energy Efficiency

The one-step process eliminates preform reheating, reducing energy consumption by 30% compared to traditional two-step systems. Triple servo motor technology ensures optimal power usage throughout the production cycle.

Precision Control

Advanced MITSUBISHI servo motors and Inverter/MIRLE PLC system provide micron-level precision in every operation. Integrated temperature control ensures consistent material properties and superior product quality.

Versatile Production

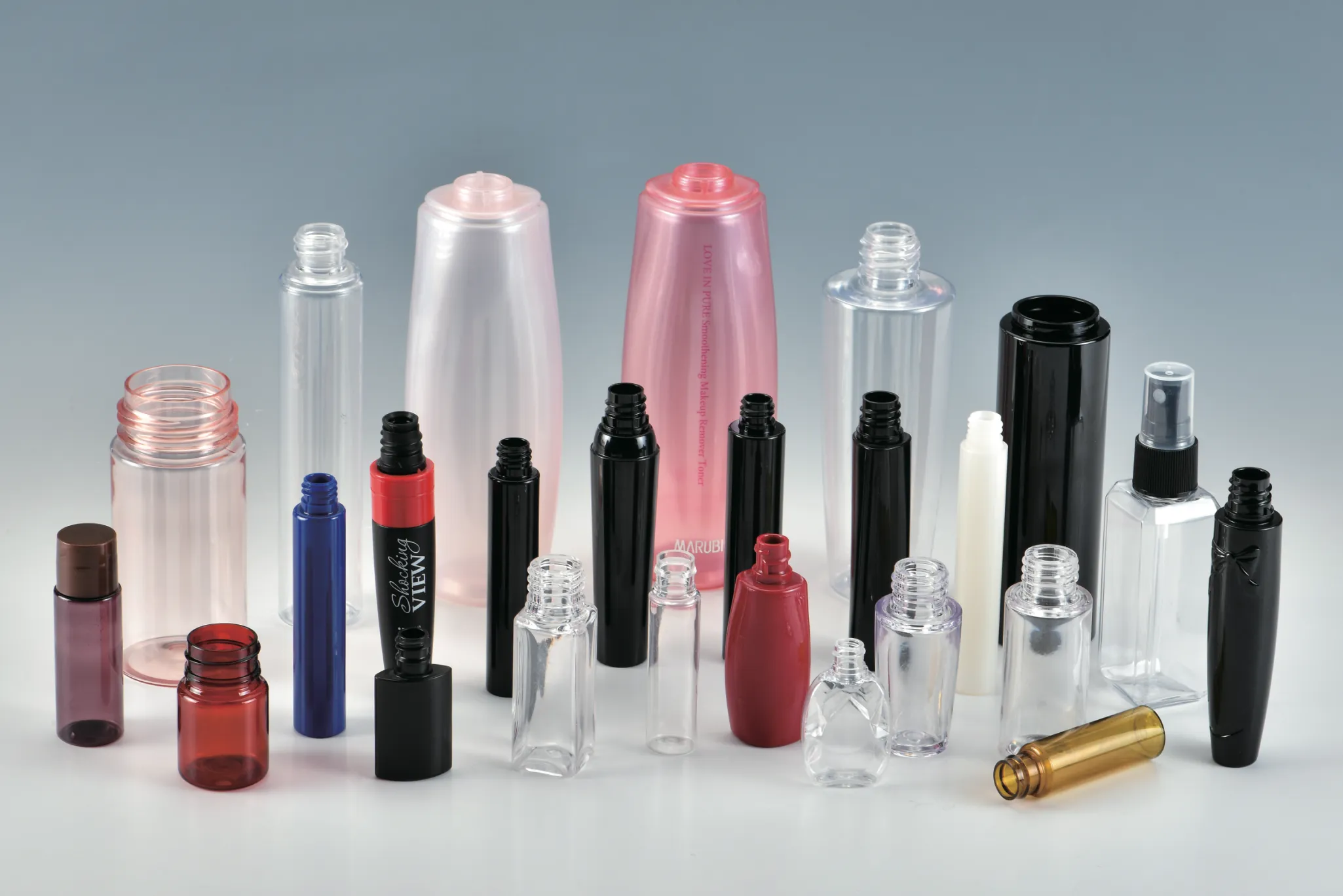

Compatible with multiple materials (PET, PETG, PC, PCTG, PP) and capable of producing bottles from 50ml to 1000ml. Quick mold change system enables rapid product switching with minimal downtime.

International Components

Equipped with premium components including Italian COMAU robot motors, Japanese MITSUBISHI servos, American Parker valves, and German YUKEN hydraulic systems, ensuring world-class reliability.

Superior Hygiene

One-step process eliminates external contamination risks associated with preform storage and handling. Ideal for pharmaceutical, cosmetic, and food-grade applications requiring the highest sanitation standards.

Stable Operation

Hydraulic cylinder mold clamping with dual servo motor compensation ensures consistent pressure distribution. Advanced cooling systems maintain optimal operating temperature for continuous 24/7 production.

Injection Molding

Molten PET/PETG material is injected into precision molds to form preforms. The servo-controlled injection system ensures consistent wall thickness and optimal molecular orientation.

Temperature Conditioning

Preforms are maintained at precisely controlled temperature using advanced heating systems. This stage ensures optimal material viscosity for the stretching process without energy waste.

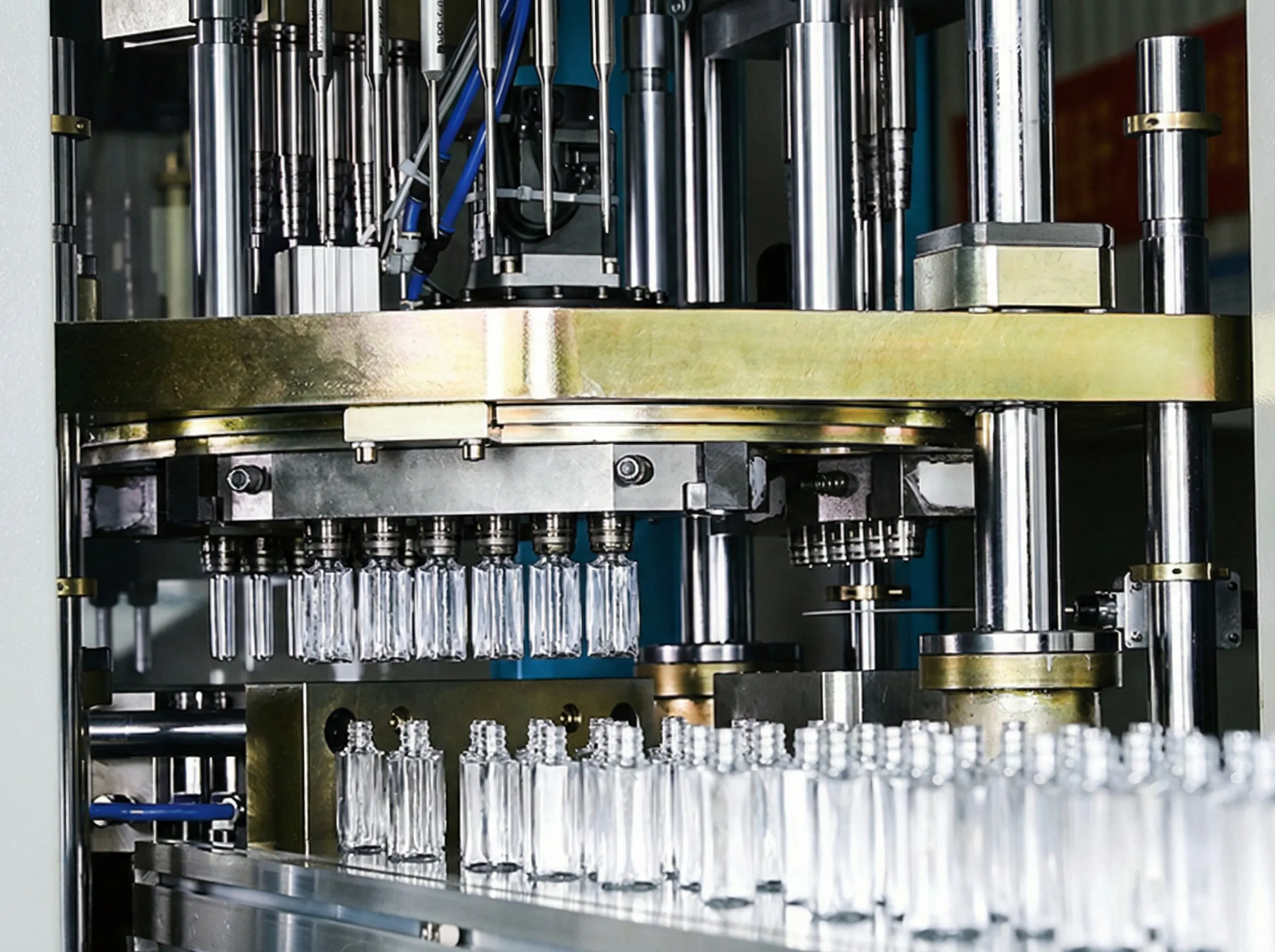

Stretch Blow Molding

Mechanical stretching rods elongate the preform while high-pressure air expands it against cooled molds. This biaxial orientation process enhances mechanical strength and clarity.

Cooling & Ejection

Finished bottles undergo rapid cooling to set their final shape. Automated ejection systems remove bottles from molds, ready for quality inspection and downstream packaging processes.

Three-Station System

• Station 1: Injection molding
• Station 2: Combined conditioning and stretch blow molding
• Station 3: Cooling and ejection

Four-Station System ✓

• Station 1: Injection molding
• Station 2: Dedicated temperature conditioning
• Station 3: Stretch blow molding
• Station 4: Cooling and ejection

We installed the EP-HGY250-V4-B for our cosmetic bottle production line six months ago. The machine's precision has significantly improved our product quality, with virtually zero defect rates. The energy savings alone have reduced our operating costs by approximately 25%. The quick mold change capability allows us to switch between different bottle designs in under 30 minutes, which has been crucial for our diverse product portfolio. Ever-Power's technical support team has been exceptionally responsive to our inquiries.

The four-station configuration has proven to be an excellent investment for our pharmaceutical packaging facility. Temperature control precision is outstanding, ensuring our medical-grade bottles meet strict regulatory standards. We appreciate the machine's stability during continuous 24-hour operations, with minimal downtime for maintenance. The integration of premium Japanese and Italian components gives us confidence in long-term reliability. Our production capacity increased by 18% compared to our previous three-station equipment while maintaining superior quality standards.

After thorough market research, we selected Ever-Power's EP-HGY250-V4-B for our beverage bottle manufacturing. The machine's servo motor system delivers exceptional precision, and the PLC interface is remarkably user-friendly. Our operators mastered the controls within two days of training. The one-step process has eliminated our previous preform storage issues and reduced material waste significantly. Energy consumption data shows a 28% reduction compared to our old two-step system. We're particularly impressed with the consistent wall thickness distribution across different bottle sizes.

We operate in the premium food packaging sector where quality is non-negotiable. The EP-HGY250-V4-B delivers consistently excellent results, producing wide-mouth containers with perfect clarity and structural integrity. The machine's hydraulic system operates smoothly with minimal noise, creating a better working environment. Maintenance requirements are reasonable, and spare parts availability through Ever-Power's supply chain has been reliable. The ROI has exceeded our initial projections due to higher production efficiency and lower rejection rates. A solid investment for quality-focused manufacturers.

The hygiene aspects of one-step production were our primary consideration for pharmaceutical applications. The EP-HGY250-V4-B eliminates contamination risks inherent in two-step processes, which was critical for our regulatory compliance. Product clarity is exceptional, and we've experienced zero haze issues since installation. The temperature conditioning station provides precise control that directly translates to consistent product quality. Ever-Power's comprehensive documentation and training materials helped our team optimize production parameters quickly. The machine meets all our stringent quality requirements.

Having worked with various blow molding equipment over twenty years, I can confidently say the EP-HGY250-V4-B represents excellent value for money. Build quality is robust, component selection is intelligent, and performance is reliable. The servo systems provide smooth operation and precise control that operators appreciate daily. Integration with our existing production line was straightforward. After one year of operation, maintenance costs have been lower than anticipated, and uptime exceeds 95%. For manufacturers seeking proven technology with modern features, this machine delivers professional results consistently.

Premium Cosmetics - Los Angeles, USA

Application: High-end cosmetic packaging for luxury skincare brand

Capacity: 4,800 bottles/hour (120ml-250ml range)

Client reported 30% reduction in production costs while achieving superior optical clarity required for premium positioning. The one-step process eliminated contamination concerns critical for skincare applications.

Pharmaceutical Bottles - Frankfurt, Germany

Application: Medical-grade containers for liquid medications

Capacity: 6,200 bottles/hour (50ml-100ml amber bottles)

Installation passed rigorous pharmaceutical industry audits. Consistent wall thickness and zero contamination risk met strict regulatory requirements. Client achieved GMP certification with continuous operation validation.

Beverage Production - Sydney, Australia

Application: PET bottles for premium mineral water brand

Capacity: 5,500 bottles/hour (500ml-1000ml)

Energy efficiency improvements delivered 27% cost savings annually. Crystal-clear bottles enhanced brand perception. Quick mold changes enabled seasonal design variations without production interruptions.

Food Packaging - Milan, Italy

Application: Wide-mouth jars for gourmet food products

Capacity: 3,800 containers/hour (200ml-800ml)

Complex jar geometries with precise threads achieved consistently. Food-grade compliance verified through independent testing. Client expanded product line using same equipment through mold changes.

Baby Care Products - Tokyo, Japan

Application: Baby formula and feeding bottles

Capacity: 7,000 bottles/hour (150ml-300ml)

Stringent safety standards for infant products exceeded. Exceptional clarity and drop resistance critical for baby bottles consistently achieved. Client reported zero quality rejections in first six months.

Personal Care - São Paulo, Brazil

Application: Shampoo and body wash bottles for mass market

Capacity: 6,500 bottles/hour (250ml-500ml)

High-volume production requirements met with 98% uptime. Robust design handles continuous operation in humid tropical climate. Energy efficiency crucial for competitive pricing in volume market segment.

1. What are the main advantages of one-step ISBM over two-step processes?

One-step ISBM eliminates the need for preform storage, transportation, and reheating, resulting in approximately 30% energy savings. The continuous thermal cycle prevents material degradation and contamination, ensuring superior product quality. Additionally, the reduced process steps lower labor costs and minimize floor space requirements. The one-step approach is particularly advantageous for applications requiring strict hygiene control, such as pharmaceutical and cosmetic packaging.

2. What materials can the EP-HGY250-V4-B process?

The machine is designed to process multiple thermoplastic materials including PET (polyethylene terephthalate), PETG (glycol-modified PET), PC (polycarbonate), PCTG (glycol-modified polycarbonate), and PP (polypropylene). Material selection depends on application requirements such as chemical resistance, clarity, barrier properties, and FDA compliance. Our technical team can recommend optimal material specifications for your specific products and provide processing parameter guidance.

3. How long does mold changeover take?

Standard mold changeover typically requires 25-40 minutes depending on operator experience and bottle complexity. The machine features quick-lock mold mounting systems and automated parameter recall through the PLC interface. For facilities with frequent product changes, we recommend maintaining a set of pre-heated backup molds to minimize downtime. Our training program includes comprehensive mold changeover procedures to optimize efficiency.

4. What maintenance is required for the EP-HGY250-V4-B?

Daily maintenance includes visual inspection of hydraulic systems, checking pneumatic pressure levels, and cleaning mold surfaces. Weekly tasks involve lubricating moving parts and inspecting servo motor connections. Monthly maintenance includes oil cooler filter cleaning and comprehensive system checks. Annual professional servicing is recommended for servo motor calibration and hydraulic component inspection. We provide detailed maintenance schedules and can arrange service contracts for predictive maintenance programs.

5. What is the typical production capacity range?

Production capacity varies based on bottle size, material, and cycle time optimization. For small bottles (50-100ml), the machine can produce 6,000-8,000 units per hour. Medium bottles (200-500ml) typically achieve 4,000-6,000 units per hour. Large bottles (600-1000ml) range from 3,000-4,500 units per hour. Actual output depends on specific product requirements, cooling time, and material properties. We provide production simulation and optimization services during commissioning.

6. Does the machine meet international safety standards?

Yes, the EP-HGY250-V4-B complies with CE certification requirements and ISO 9001 quality management standards. Safety features include emergency stop systems, protective guards with interlocking sensors, and automatic mold protection mechanisms. The machine is designed according to international machinery safety directives and includes comprehensive safety documentation. Additional certifications can be arranged for specific regional requirements.

7. What training and support does Ever-Power provide?

We offer comprehensive operator training programs covering machine operation, parameter optimization, troubleshooting, and routine maintenance. Training can be conducted at our facility or on-site during installation. Post-installation support includes remote technical assistance, spare parts supply, and periodic performance reviews. Our technical team maintains detailed equipment histories and can provide data-driven optimization recommendations. Extended warranty and maintenance contracts are available.

8. Can the machine integrate with existing production lines?

The EP-HGY250-V4-B is designed for integration with standard filling, capping, and labeling equipment. Standard conveyor interfaces accommodate various bottle handling systems. The PLC system supports common industrial protocols for automated production line synchronization. We provide engineering consultation to ensure seamless integration with your existing infrastructure, including utilities planning and layout optimization.

9. What is the expected lifespan and ROI timeline?

With proper maintenance, the machine's operational lifespan typically exceeds 15 years. Critical components using premium international brands (MITSUBISHI, COMAU, Parker) ensure long-term reliability. ROI calculations vary based on production volume, material costs, and energy rates, but most facilities achieve payback within 2-3 years through reduced operational costs and increased efficiency. We provide detailed ROI analysis customized to your specific production requirements.

10. How does the four-station design improve product quality?

The dedicated temperature conditioning station (Station 2) ensures optimal preform temperature distribution before stretching, critical for uniform wall thickness and preventing defects. Separating conditioning from blow molding allows independent optimization of each phase, resulting in superior optical clarity, dimensional consistency, and mechanical strength. This configuration particularly benefits complex bottle designs and applications requiring tight tolerance specifications.

11. What utilities and infrastructure are required for installation?

The machine requires stable three-phase electrical supply at 370-400V, compressed air at 2.0-3.5 MPa pressure, cooling water at 0.4-0.6 MPa, and machine oil cooler water at 0.3-0.4 MPa. Floor space requirement is approximately 5.2m × 2.5m with additional clearance for maintenance access. Foundation should support 16 tons distributed weight. Detailed utility specifications and installation drawings are provided during project planning. We can conduct pre-installation site surveys to ensure optimal setup.

Trusted by Industry Leaders

Our client roster includes renowned brands such as C'estbon, Haitian, Luhua, Walch, Blue Moon, Proya, Liby, Estée Lauder, Walmart, Big Forest, and Shining Eye Drops. These partnerships reflect the trust leading companies place in our technology and service capabilities. Each collaboration strengthens our understanding of diverse market requirements and drives our commitment to innovation.
